供應全球優質的滑動承載延伸系統

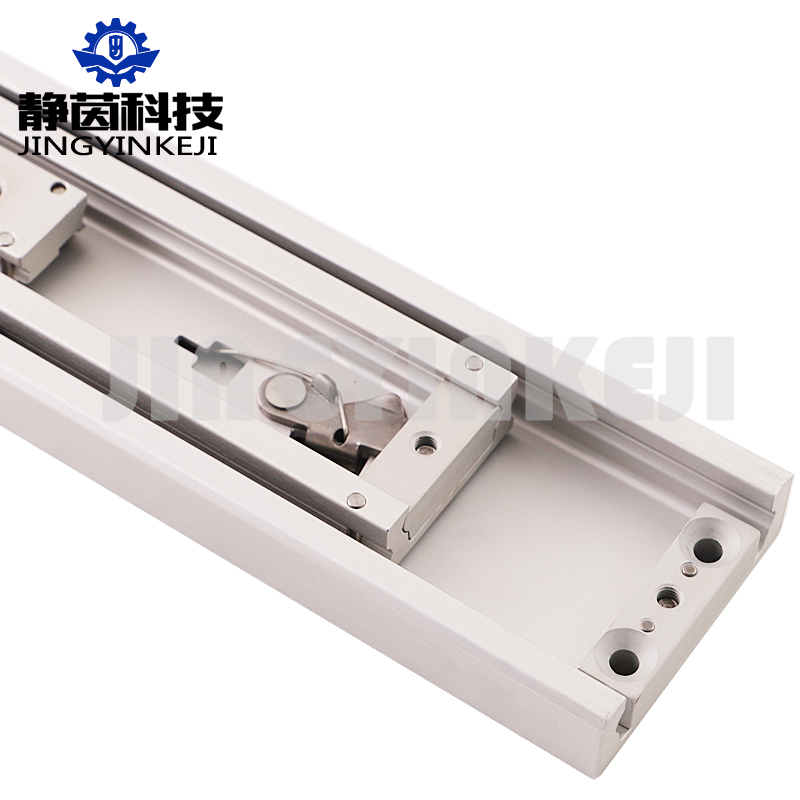

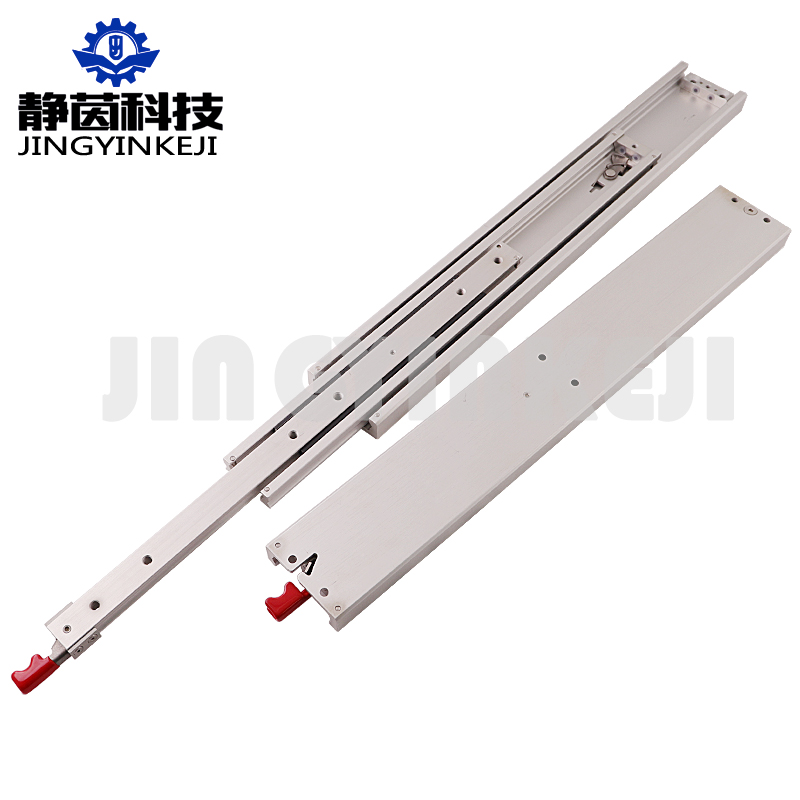

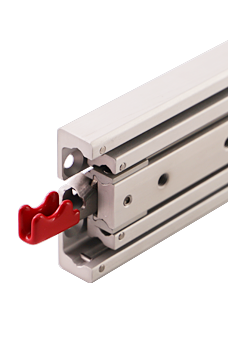

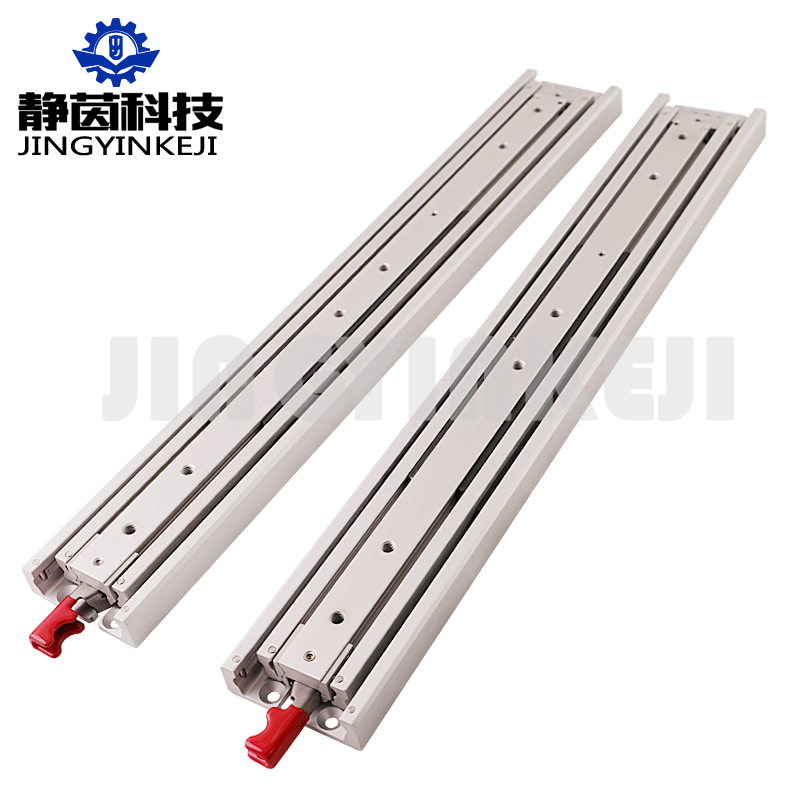

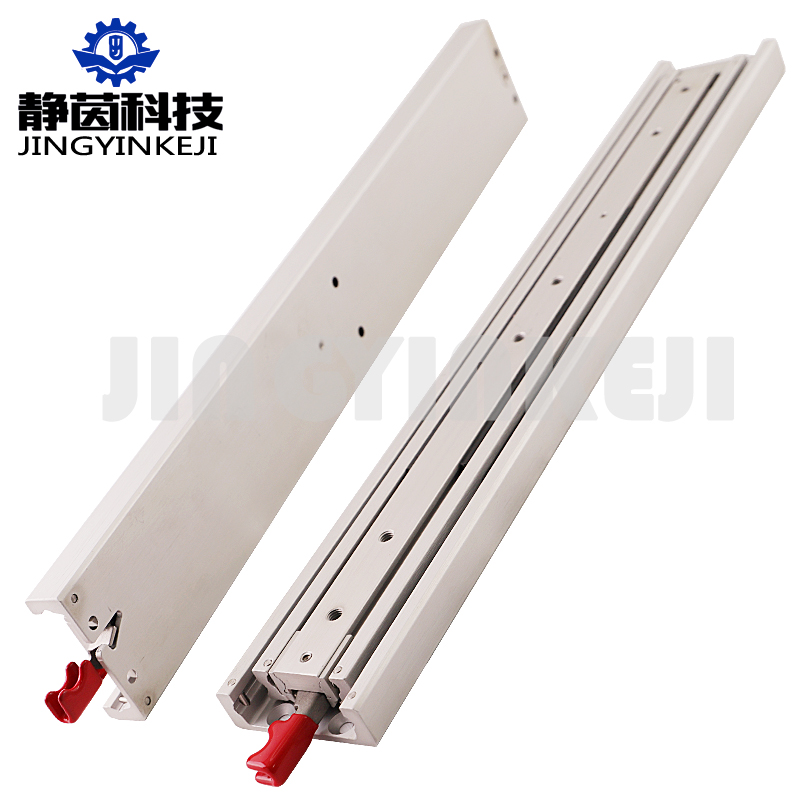

SHJY.5117.8027（90-330kg）帶鎖款
| 安裝間隙: | 26.5mm |
| 高度: | 80mm |
| 閉合長度: | 300-1700mm |
| 延展長度: | 300-1700mm |
| 最大載重: | 90-330kg/pair |
| 滑軌節數: | 3 |
| 延展程度: | Total |
| 材質: | Aluminium alloy |
| 抗震動性: | 7 |
產品編號 | 閉合長度 (mm) | 延展長度 (mm) | 最大載重 (kg) |
|---|---|---|---|
| 5117.SHJY8027.0300 | 300mm | 300mm | 250kg |
| 5117.SHJY8027.0350 | 350mm | 350mm | 260kg |
| 5117.SHJY8027.0400 | 400mm | 400mm | 270kg |
| 5117.SHJY8027.0450 | 450mm | 450mm | 280kg |
| 5117.SHJY8027.0500 | 500mm | 500mm | 290kg |
| 5117.SHJY8027.0550 | 550mm | 550mm | 300kg |
| 5117.SHJY8027.0600 | 600mm | 600mm | 320kg |
| 5117.SHJY8027.0650 | 650mm | 650mm | 330kg |
| 5117.SHJY8027.0700 | 700mm | 700mm | 315kg |
| 5117.SHJY8027.0750 | 750mm | 750mm | 300kg |
| 5117.SHJY8027.0800 | 800mm | 800mm | 290kg |
| 5117.SHJY8027.0850 | 850mm | 850mm | 280kg |
| 5117.SHJY8027.0900 | 900mm | 900mm | 270kg |
| 5117.SHJY8027.0950 | 950mm | 950mm | 260kg |
| 5117.SHJY8027.1000 | 1000mm | 1000mm | 250kg |
| 5117.SHJY8027.1050 | 1050mm | 1050mm | 240kg |
| 5117.SHJY8027.1100 | 1100mm | 1100mm | 230kg |
| 5117.SHJY8027.1150 | 1150mm | 1150mm | 220kg |
| 5117.SHJY80271200 | 1200mm | 1200mm | 210kg |
| 5117.SHJY8027.1250 | 1250mm | 1250mm | 200kg |
| 5117.SHJY80277.1300 | 1300mm | 1300mm | 190kg |
| 5117.SHJY8027.1350 | 1350mm | 1350mm | 180kg |
| 5117.SHJY8027.1400 | 1400mm | 1400mm | 170kg |
| 5117.SHJY8027.1450 | 1450mm | 1450mm | 160kg |
| 5117.SHJY8027.1500 | 1500mm | 1500mm | 150kg |
| 5117.SHJY8027.1550 | 1550mm | 1550mm | 140kg |
| 5117.SHJY8027.1600 | 1600mm | 1600mm | 130kg |
| 5117.SHJY8027.1650 | 1650mm | 1650mm | 110kg |
| 5117.SHJY8027.1700 | 1700mm | 1700mm | 90kg |
5117.SHJY.8027--12 length 300mm- 3D STEP FILE -
5117.SHJY.8027--12
5117.SHJY.8027--14 ength 350mm- 3D STEP FILE -
5117.SHJY.8027--14
5117.SHJY.8027--16 length 400mm- 3D STEP FILE -
5117.SHJY.8027--16
5117.SHJY.8027--18 length 450mm- 3D STEP FILE -
5117.SHJY.8027--18
5117.SHJY.8027--20 length 500mm- 3D STEP FILE -
5117.SHJY.8027--20
5117.SHJY.8027--22 length 550mm- 3D STEP FILE -
5117.SHJY.8027--22
5117.SHJY.8027--24 length 600mm- 3D STEP FILE -
5117.SHJY.8027--24
5117.SHJY.8027--26 length 650mm- 3D STEP FILE -
5117.SHJY.8027--26
5117.SHJY.8027--28 length 700mm- 3D STEP FILE -
5117.SHJY.8027--28
5117.SHJY.8027--30 length 750mm- 3D STEP FILE -
5117.SHJY.8027--30
5117.SHJY.8027--32 length 800mm- 3D STEP FILE -
5117.SHJY.8027--32
5117.SHJY.8027--34 length 850mm- 3D STEP FILE -
5117.SHJY.8027--34
5117.SHJY.8027--36 length 900mm- 3D STEP FILE -
5117.SHJY.8027--36
5117.SHJY.8027--38 length 950mm- 3D STEP FILE -
5117.SHJY.8027--38
5117.SHJY.8027--40 length 1000mm- 3D STEP FILE -
5117.SHJY.8027--40
5117.SHJY.8027--42 length 1050mm- 3D STEP FILE -
5117.SHJY.8027--42
5117.SHJY.8027--44 length 1100mm- 3D STEP FILE -
5117.SHJY.8027--44
5117.SHJY.8027--46 length 1150mm- 3D STEP FILE -
5117.SHJY.8027--46
5117.SHJY.8027--48 length 1200mm- 3D STEP FILE -
5117.SHJY.8027--48
5117.SHJY.8027--50 length 1250mm- 3D STEP FILE -
5117.SHJY.8027--50
5117.SHJY.8027--52 length 1300mm- 3D STEP FILE -
5117.SHJY.8027--52
5117.SHJY.8027--54 length 1350mm- 3D STEP FILE -
5117.SHJY.8027--54
5117.SHJY.8027--56 length 1400mm- 3D STEP FILE -
5117.SHJY.8027--56
5117.SHJY.8027--58 length 1450mm- 3D STEP FILE -
5117.SHJY.8027--58
5117.SHJY.8027--60 length 1500mm- 3D STEP FILE -
5117.SHJY.8027--60
5117.SHJY.8027--64 length 1600mm- 3D STEP FILE -
5117.SHJY.8027--64
5117.SHJY.8027--68 length 1700mm- 3D STEP FILE -
5117.SHJY.8027--68
4013.3213 Enquiry
